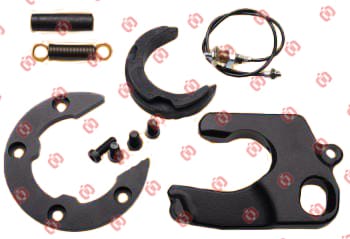

Kit Rep.locking Device. Suitable Jost Sk3121- 60z Ref Onyarbi 90.32.28 — KIT REP.LOCKING DEVICE. - Ref Onyarbi 90.32.28

📄KIT REP.LOCKING DEVICE. - 90.32.28

Brand
Original's Ref.: SK3121- 60Z
Classification
Applications: JSK 37CW

JSK 37EW
Ref.various: DAF 1623195
JOST SK3121-60Z
JOST JSK 42
SAMPA 095.539
Weight: 2.60

Pos	Description	Onyarbi's Ref.	Original's Ref.	Applications
1	WEARING RING FIXTURE	90.32.24	SK3105-93	JSK 37CW
10	HEX. SCREW COMPLETE	90.13.38	SK1513	JSK 37CW
11	DOUBLE TENSION SPRING	90.12.22	SK3105-20	JSK 37CW
12	LUBRICATION TUBING	90.12.23	SK3108-02	JSK 37CW
13	RUBBER BOTTOM	90.13.33	SK2105-25	JSK 37CW
14	RUBBER CUSHION TOP	90.13.32	SK1259	JSK 37CW
16	RUBBER BEARING MODEL "C".	90.32.30	SK2121-69	JSK 37CW
2	SOCKET HEAD BOLT	70.01.71	SK3121-55	JSK 37CW
3	WEARING RING INSERT	90.32.25	SK3105-92	JSK 37CW
4	LOCK JAW	90.12.48.1	SK1489Z	JSK 37CW
5	PIVOT FOR LOCK JAW	90.12.18	SK2106-67	JSK 37CW
6	LOCK JAW SPRING	80.03.15	SK847	JSK 37CW
7	COTTER PIN	90.13.31	SK2122-04	JSK 37CW
8	LOCKING BAR	90.12.21	SK3205-06	JSK 37CW
9	LOCKING BAR BOLT COMPLETE	90.13.24	SK3221-01	JSK 37CW
1	WEARING RING FIXTURE	90.32.24	SK3105-93	JSK 37EW
10	HEX. SCREW COMPLETE	90.13.38	SK1513	JSK 37EW
11	DOUBLE TENSION SPRING	90.12.22	SK3105-20	JSK 37EW
12	LUBRICATION TUBING	90.12.23	SK3108-02	JSK 37EW
14	RUBBER CUSHION TOP	90.13.32	SK1259	JSK 37EW
15	PIVOT BEARING MODEL "E"	90.32.31	SK3121-61	JSK 37EW
2	SOCKET HEAD BOLT	70.01.71	SK3121-55	JSK 37EW
3	WEARING RING INSERT	90.32.25	SK3105-92	JSK 37EW
4	LOCK JAW	90.12.48.1	SK1489Z	JSK 37EW
6	LOCK JAW SPRING	80.03.15	SK847	JSK 37EW
7	COTTER PIN	90.13.31	SK2122-04	JSK 37EW
8	LOCKING BAR	90.12.21	SK3205-06	JSK 37EW
9	LOCKING BAR BOLT COMPLETE	90.13.24	SK3221-01	JSK 37EW

Kit components 90.32.28:

Onyarbi's Ref.	Description	Qte Components
90.12.23	LUBRICATION TUBING	1
90.32.26	KIT REP.WEARING RING.	1
90.32.80	KIT VARIOS JOST	1

All manufacturer’s names, numbers, symbols and descriptions are used for reference purposes only, and it is not implied that any part listed is the product of these manufacturers.

DAF	1623195
JOST	SK3121-60Z
JOST	JSK 42
SAMPA	095.539

JOST
